Canvas Power Supplies bring simplicity and modularity to powering your pedalboard. Delivering up to 500mA of silent, isolated, and clean 9V power to each output, these power supplies are perfect for the modern pedalboard. The Canvas Power series is built using modern switch mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered ensuring they supply plenty of power with incredibly low noise.

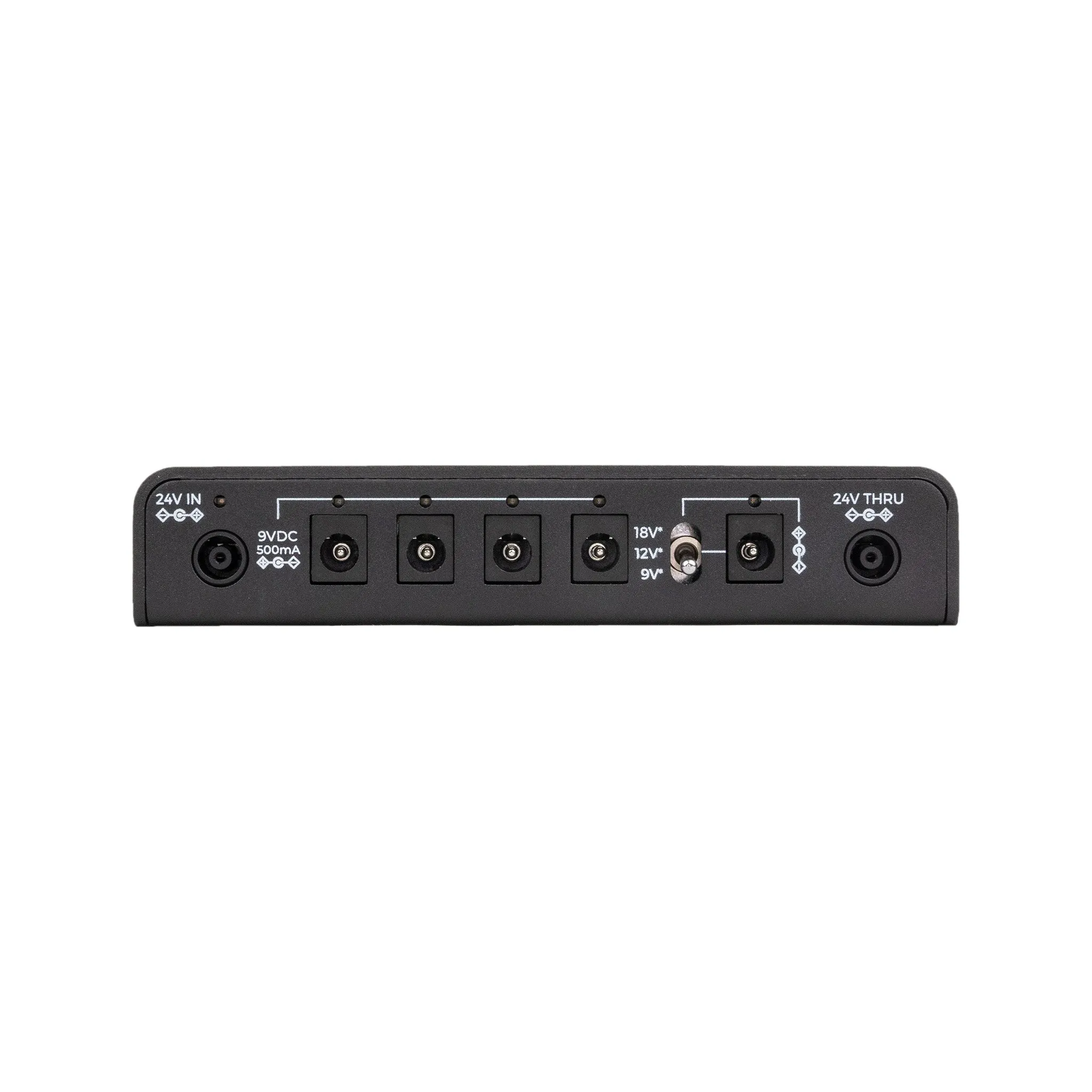

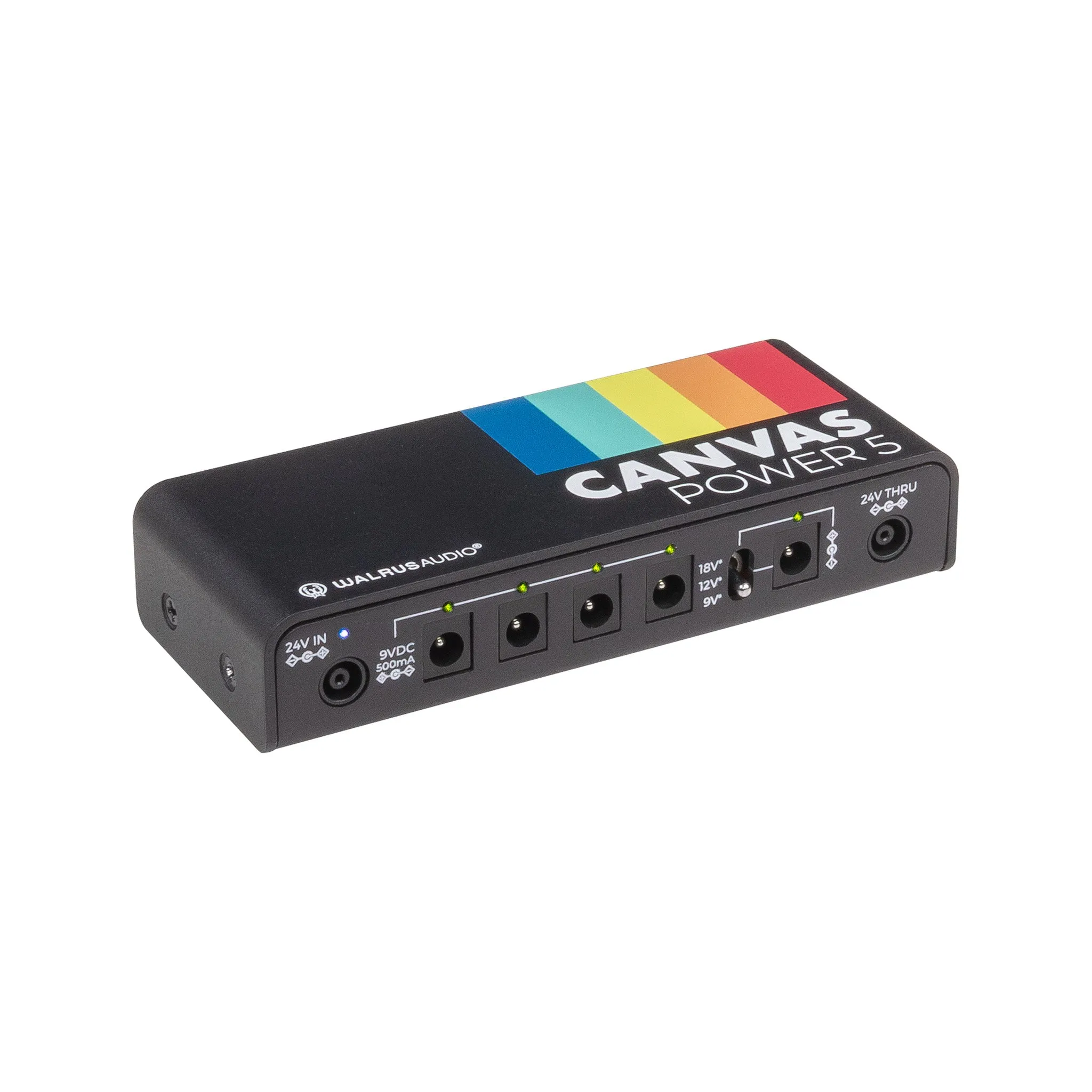

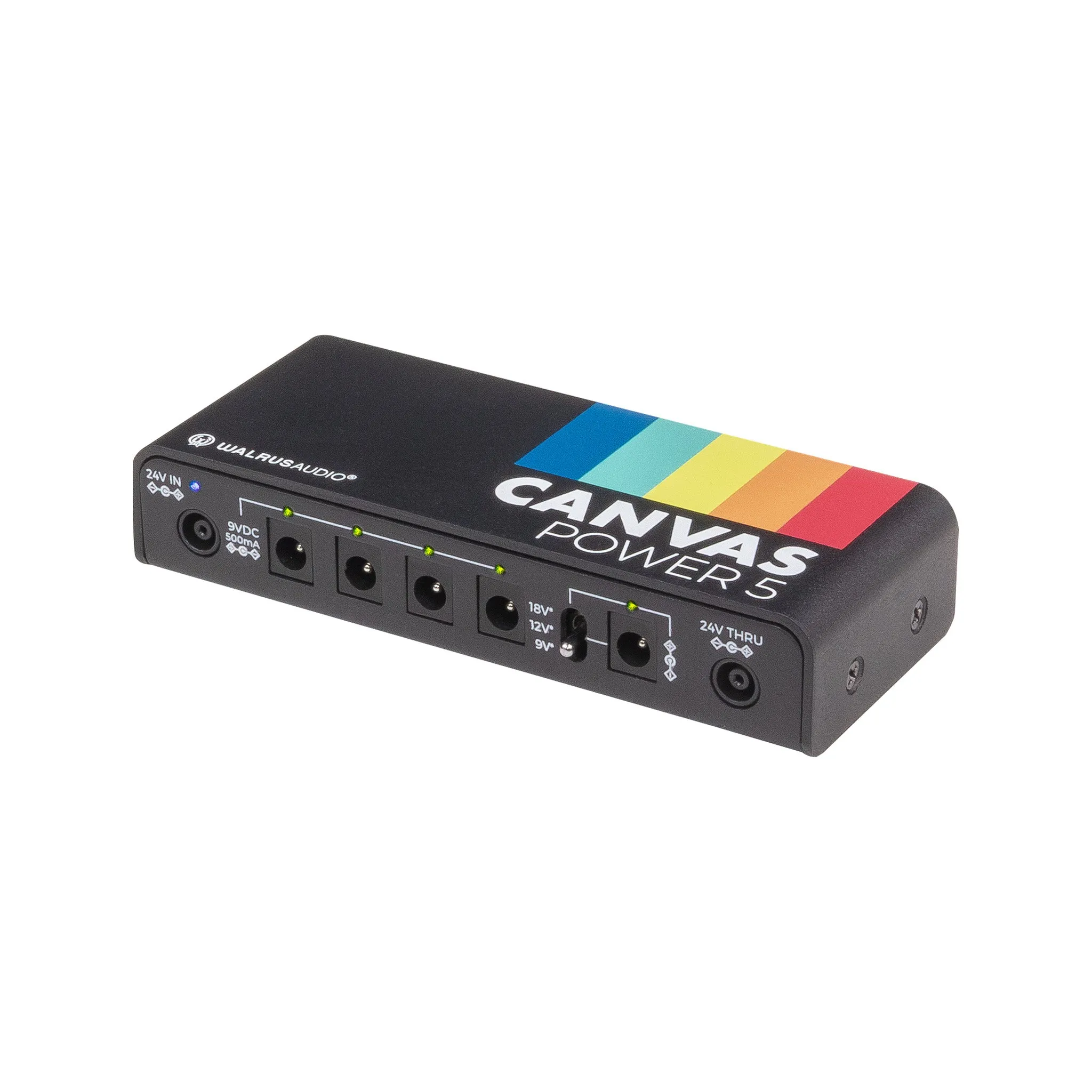

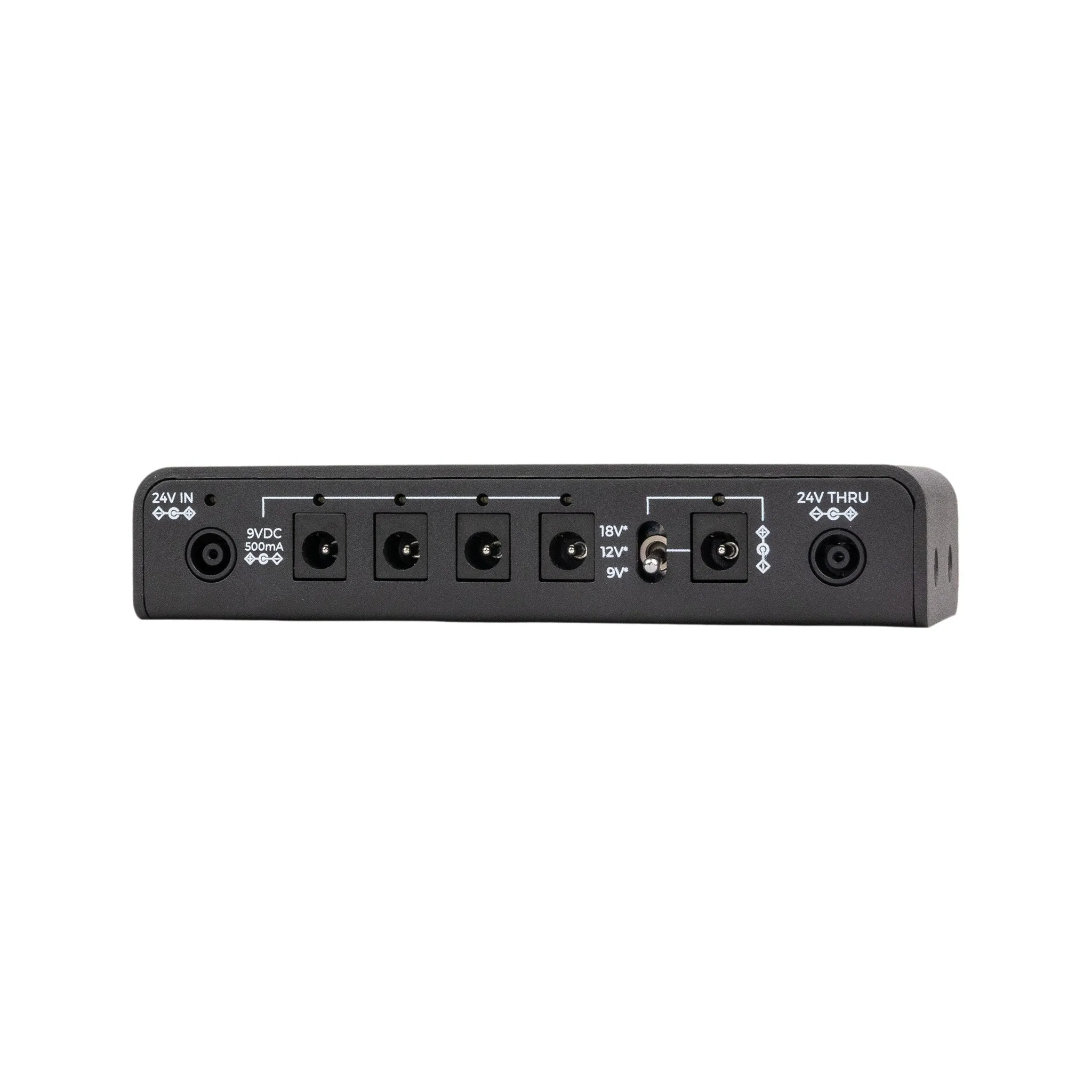

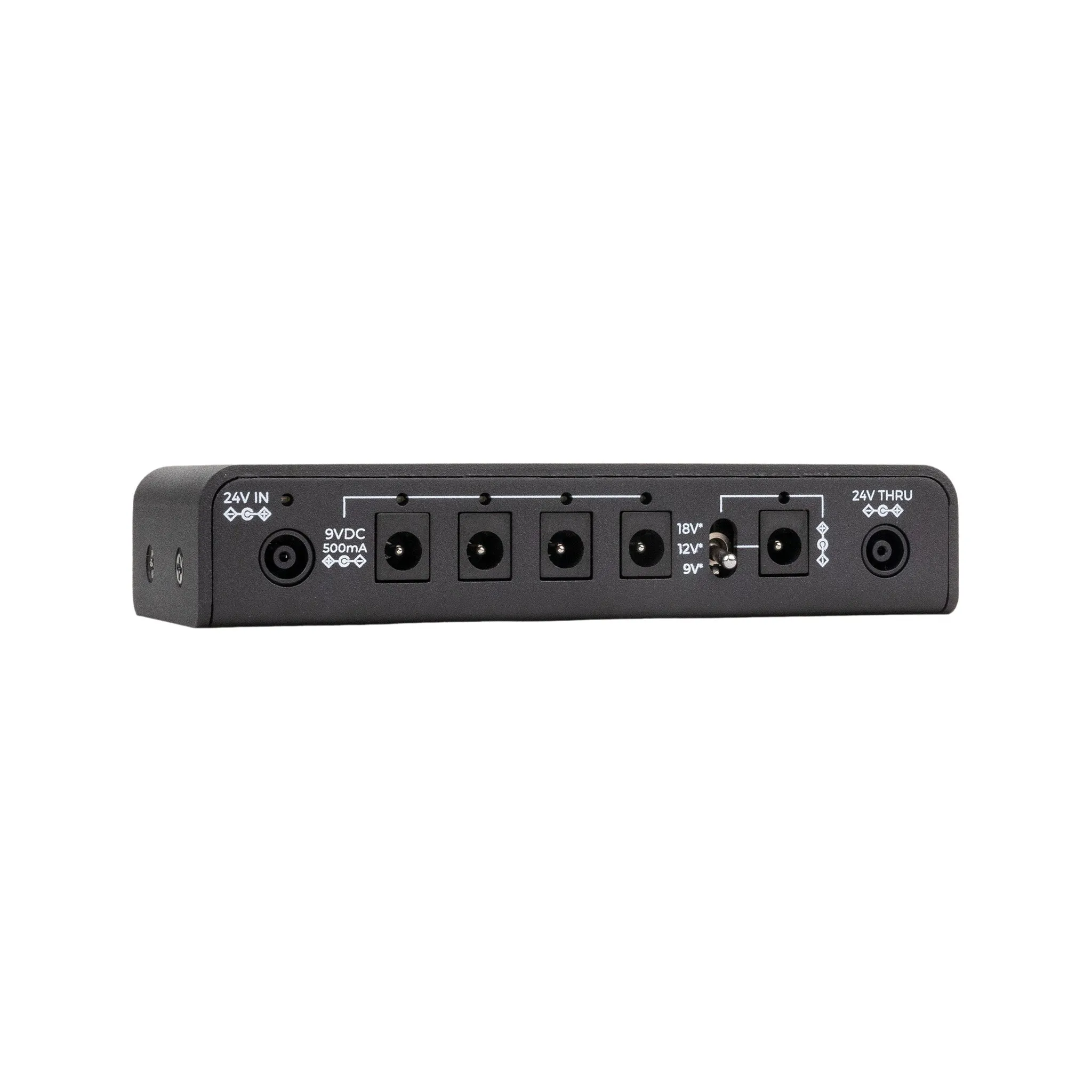

The Canvas Power 5 has 5 isolated power outputs delivering up to 500mA of clean power at 9v. One of the outlets is variable voltage, letting you switch between 9v, 12v, and 18v for powering high-voltage pedals.
Features:
- 5 isolated outputs
- 500mA on each 9V isolated outputs
- LED indicators to indicate a solid connection

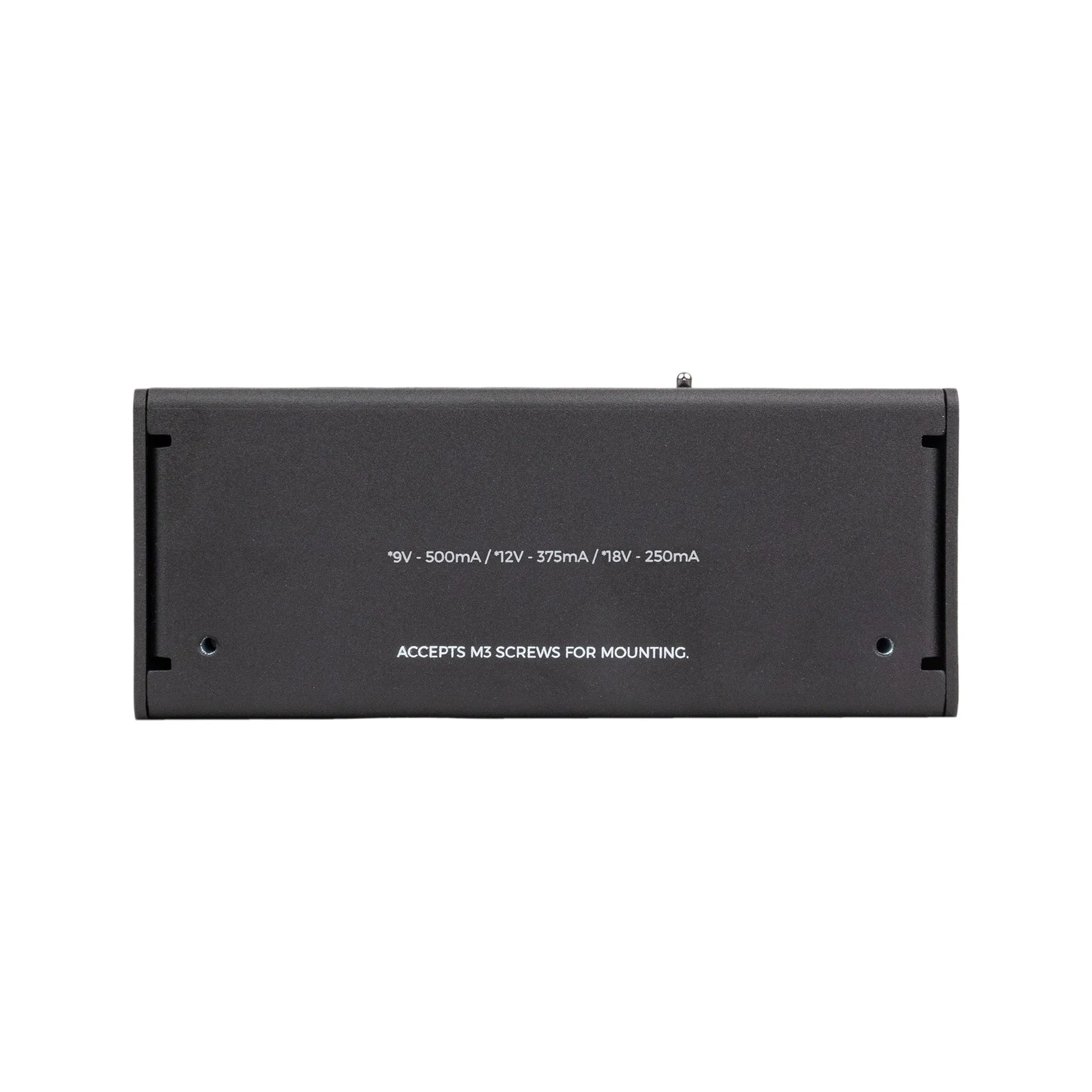

- Voltage selection from 18, 12 or 9v (375mA max. @ 12V / 250mA max. @ 18V)
- 48W, 24V DC 2A power brick included
Specifications:
- Power Output: 4 - 9VDC 500mA outputs, 1 - 9V, 12V or 18V variable output

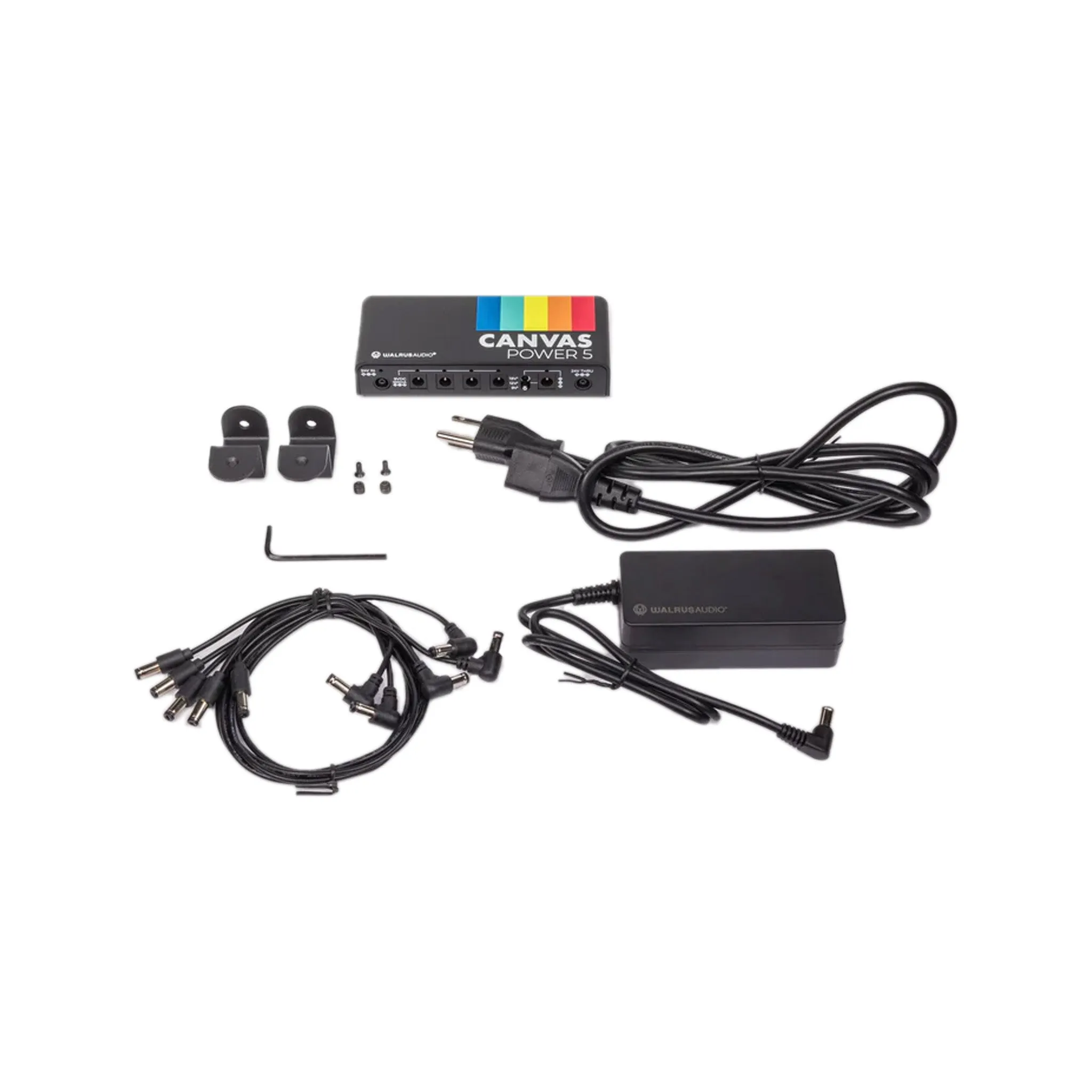

- Includes: 1 x Canvas Power Supply, 18” Straight to right angle DC Cable – Qty. 5, 48W, 24V DC 2A power brick and country-specific IEC cable, C style mounting bracket set, M3 Hex Key
- Dimensions: 133mm x 54mm x 25.5mm (5.23" x 2.12" x 1")
- Weight: 186g (.41lbs)
