Fast Facts

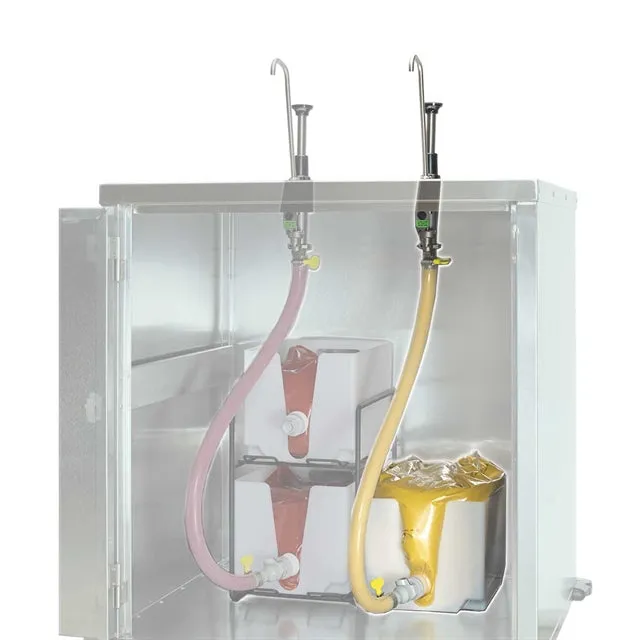

The manually operated remote system simplifies high-volume dispensing; eliminates the hassles of a CO2 driven dispenser. The flush-mounted stainless steel pump taps into a large condiment or salad dressing pouch below the counter. New Quick Connect feature makes changeouts cleaner and adapts to both 16 mm fitment and 38 mm connector pouch styles.
Application
- Volume dispensing at concession stands, schools, fairs, athletic events

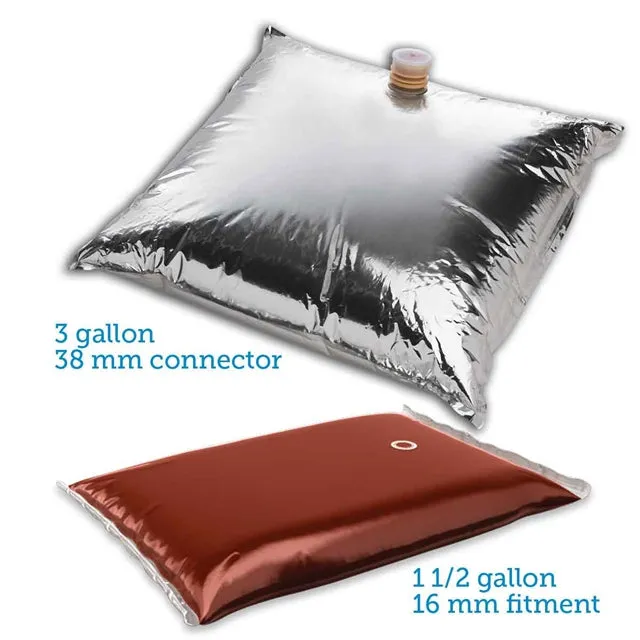

- Common 1 1/2 gallon pouches with a 16 mm fitment and 3 gallon pouches with a 38 mm connector

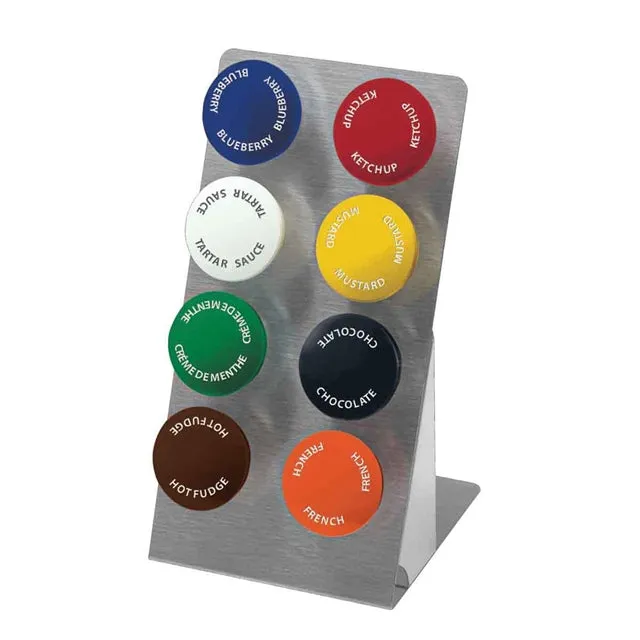

The stainless steel pump dispenses a 1 oz serving per stroke with the option to reduce the portion size in 1/8 oz increments. Set it to fill a soufflé cup with one pump to prevent bottlenecks at the condiment station. When you place your order, ask about a complimentary colored knob engraved with the condiment served; black is standard.
Key Benefits
- Reduce bottlenecks at the condiment station; set portion to fill a soufflé cup with one pump
- NSF listed, clean-in-place certified; also disassembles completely for cleaning at a dish station
- Quick-Connect System works with both pouch styles and makes changeouts easy and mess-free
- Pouch support accepts both 1 1/2 gallon 16 mm fitment and 3 gallon 38 mm connector pouch styles
| GTIN | 687329030880 |
| Height Above Container | 9 9/16" | 24.3 cm |
| Width | 4 1/2" | 11.4 cm |
| Depth | 11 1/2" | 29.2 cm |
| Weight | 9 lb |
| Dimensional Weight | 36 lb | 16.3 kg |
| International Dim Wt | 43 lb | 19.5 kg |
| Cutout | refer to installation manual |
| Works With | 1 1/2 gal (5.7 L) pouch w/16 mm fitment and 3 gal (11.4 L) pouch w/38 mm connector |
| Capacity | 1 1/2 & 3 gal | 5.7 & 11.4 L pouches |
| Dispense Type | pump |
| Full Portion | 1 oz | 30 mL |
| Portion | adjustable in 1/8 oz (3.7 mL) increments; up to 1 oz (30 mL) |
| NSF Listed | Y |
